GL12-A 25000 Lux Rechargeable LED Headlamp , Explosion Proof Mining Lamp with 10.4 Ah Li-Ion Battery
Main Features for Model GL12-A mining headlamp with cable:
1. Brightness: 25000lux high beam headlamp with cable. 2. Portable: light weight 490g and big battery capacity 10.4Ah 3. Fast charging: 2A charger, charging time less than 6hours 4. Better lighting spot: adopt aluminum lighting cup.
5. SOS for low power warning function for safety headlamp. 6. Special material with flame resistant, impact resistant. ATEX explosion-proof, Dust-proof. 7. Enviromental: Lithium battery with short circuit protection, over charging protection and over discharging, free mataince long battery life span. 8. OEM and ODM available. Write the request to cap lamps, such as clients company name, LOGO, seriey No and user name. 9. Optical Design: According to LED Luminous Flux, Light cup curve and current to design the Light Beam.
10. Quality is our culture. We will be responsible for you if any quality problem and warranty time is one year.
Main parameter of rechargeable led headlamp:
| Specification | GL12-A |
| Light sources | One main light and two auxiliary lights |
| Rated voltage | 3.7V |
| Battery capacity | 10.4Ah |
| Main light amper (strong light) | 1000mA |
| Main light amper (working light) | 600mA |
| Power of the main light(strong light) | 3W |
| Power of the main light(working light) | 1.8W |
| luminous(strong light) | 348Lum |
| luminous(working light) | 240Lum |
| Brightness of the main light(strong light) | 25,000Lux |
| Brightness of the main light(strong light) | 15,000Lux |
| LED lifespan | 10,000hours |
| Battery cycles | 1200cycles |
| Charging time | less than 6hours |
| Cable length | 1.2m or 1.6m can be customized |
| Weight | 490g |
| Water-proof grade | IP68 |
| Light switch | light touch switch |
| Certified | CE&ATEX, ROHS
|
Trouble and troubleshootings:
| Trouble description | Trouble analysis | Troubleshooting |
| Ligth is not on when pressing the botton | Battery power is used up or automatic opening protection | Charge the light |
| Working time is less than 12hours | Battery is not fully charged | Make sure the lamp well connected to the charger when charging |
| Longer charging time | The charging points poor contact | Clean the charging points and slot |
| Low illuminance | Dirty lens | Clean water wash lens |

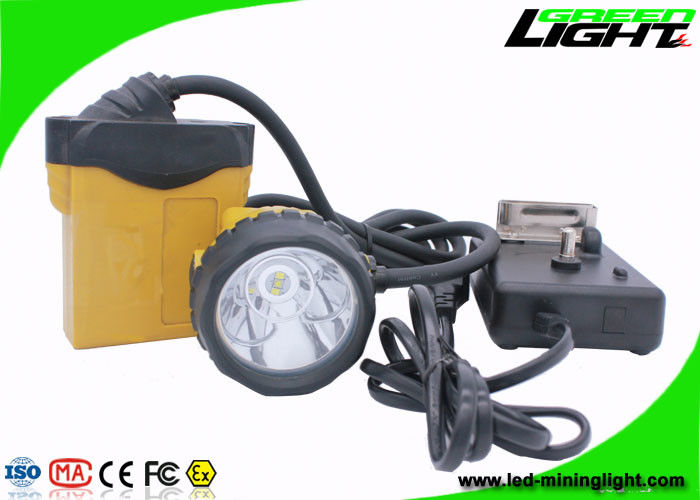

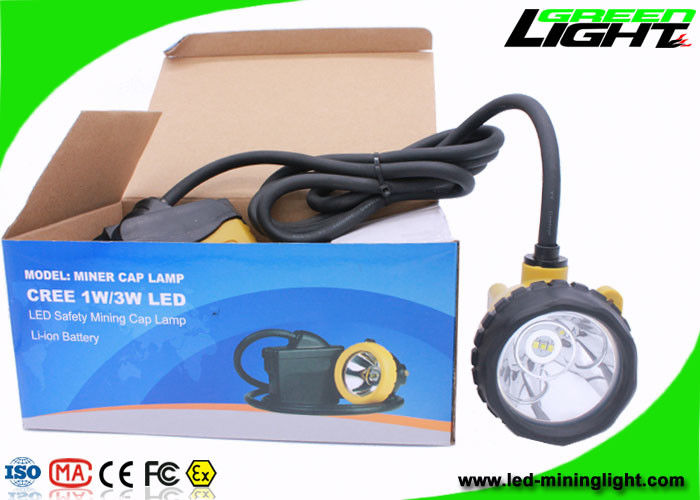

Detailed Pictures for charger and package shown as following:
Application:
Widely used in petrochemical, chemical, nuclear power, military automobile shipbuilding industries, suitable for oil pipelines, cable interlayer, platform channel, pump house , Tunnel Project , Mountian-climbing,hiking, Patrolling, Overhauling and Emergency in electrical power company,Mine , Military, Police, Fire Fighting, Dockyard and other hazardous locations ect..
If you have any question, please feel free to contact us. We will reply you as soon as possible.
